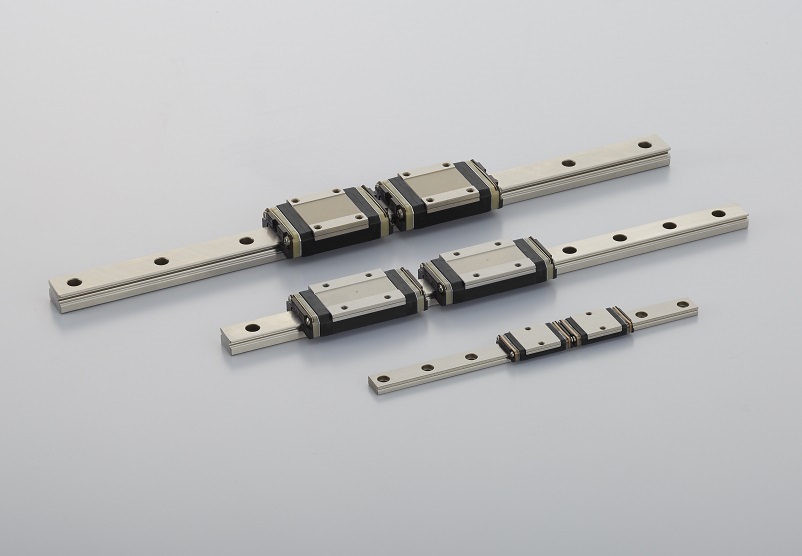

A compact and lightweight PU Model product with a short delivery time.
Random matching of rails and sliders for quick delivery.

Features
1. Smooth operability
2. Lightweight
3. Made of stainless steel
4. Low dust generation
5. Random matching

Size
･Rail width：9-15
･Slider shape：Square, Square long
･Preload：Fine Clearance
･Accuracy：Average grade
* Please refer to the attached PU Model and PDF for specifications.

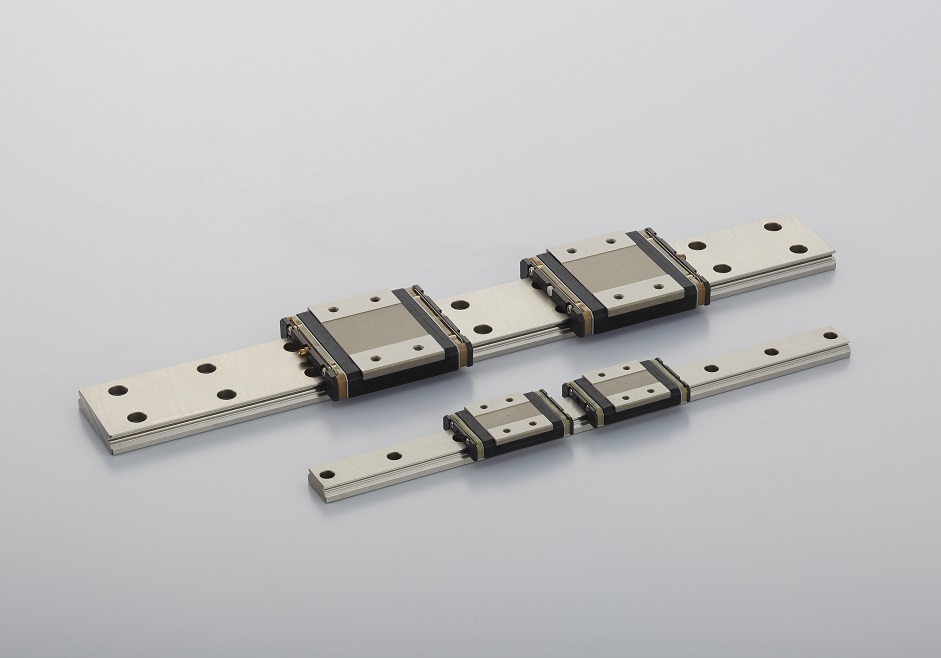

A compact, lightweight and wide PE Model product with a short delivery time.
Random matching of rails and sliders for quick delivery.

Features
1. Smooth operability
2. Lightweight
3. Made of stainless steel
4. Low dust generation
5. Random matching

Size
･Rail width：18-42 (Nominal number is 9-15)
･Slider shape：Square type, Square type long
･Preload：Fine clearance
･Accuracy：Normal grade
* Please refer to the attached PE Model and PDF for specifications.

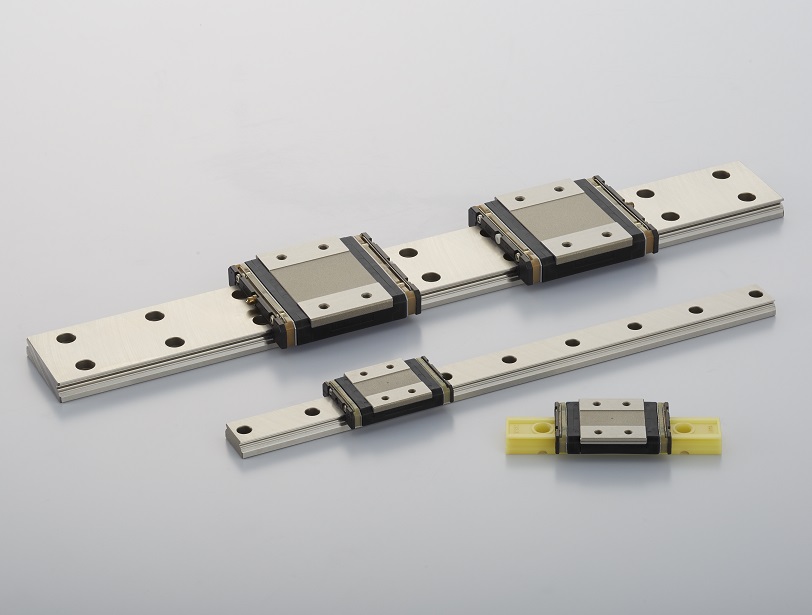

A new design of the slider circulation realizes smooth circulation, and some resin materials are used.
It is a product that reduces the weight of the slider by about 20%.

Features
1. Smooth operability
2. Lightweight
3. Made of stainless steel
4. Low dust generation
5. Product lineup for quick delivery (Click! Speedy)

Size
･Rail width：9-15
･Slider shape：Square, Square long
･Preload：Fine clearance to Fine preload
･Accuracy：Average to Ultra-precision

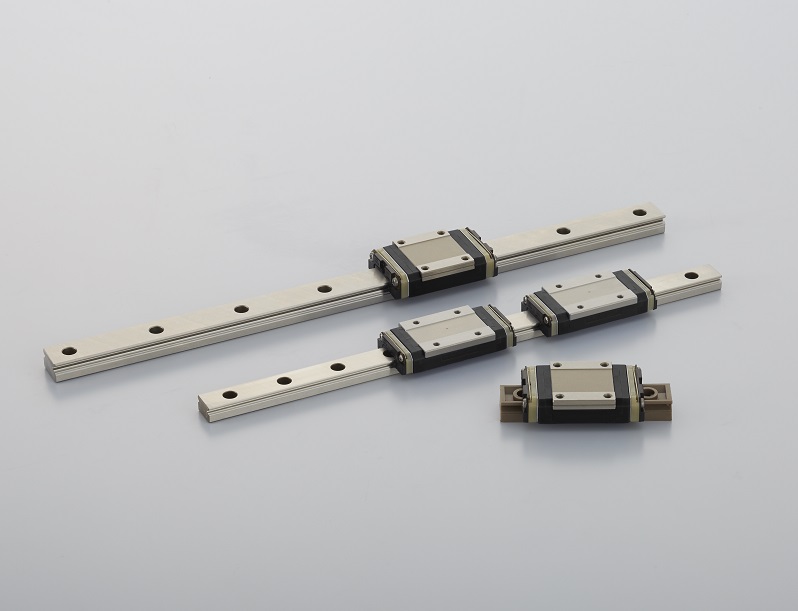

It is a product with a wider rail width of the miniature, and it is smooth due to the new design of
the slider circulation part.
It is a product that realizes circulation and uses some resin materials to reduce the weight of
the slider to about 20%.

Features
1. Smooth operability
2. Lightweight
3. Made of stainless steel
4. Low dust generation
5. Product lineup for quick delivery (Click! Speedy)

Size
･Rail width：18-42 (nominal number 9-15)
･Slider shape：Square, Square long
･Preload：Fine clearance to Fine preload
･Accuracy：Average to Ultra-precision
