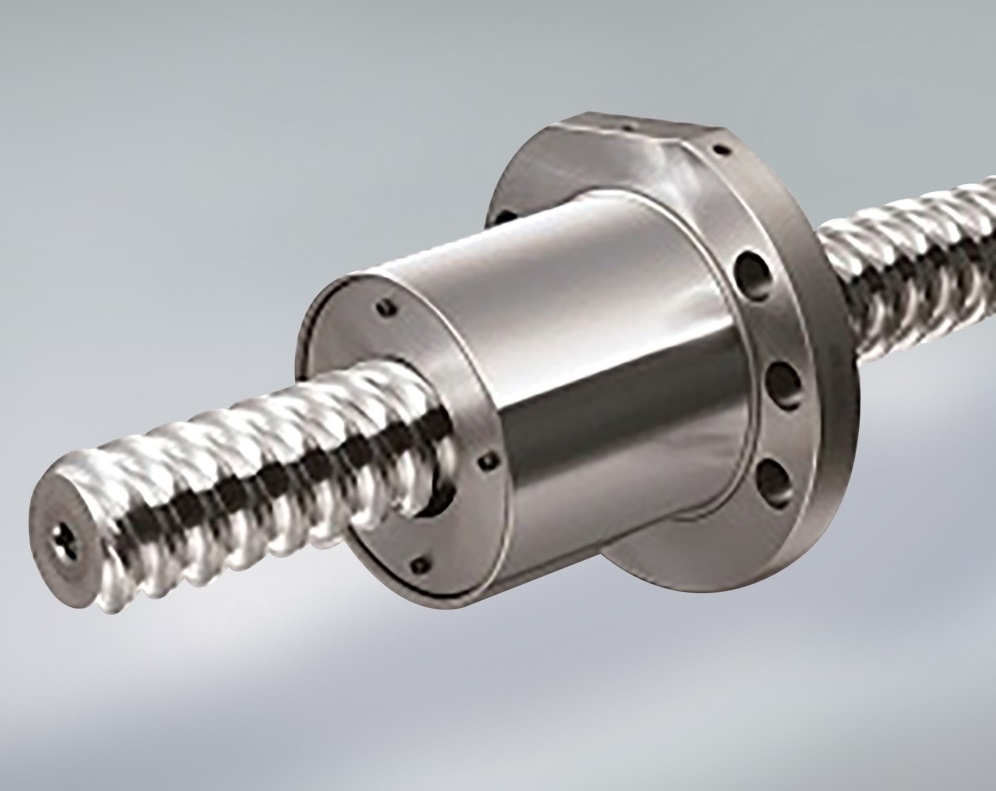

Ball Screw for high load drive, optimization of circulation path arrangement and
Ideal for high loads with the ball diameter as large as possible
Due to the ball groove design,
The load bearing performance is greatly improved compared to the conventional ball screw.
The SRC circulationr method is adopted as the circulation method

Adopting SRC method as circulation method, allowable d ・ n value 160,000 (leads 14, 16),
Allowable d / n value 140,000 (leads 20 and 25) A product that achieves high speed and quietness.
Achieves high speed (more than twice) and quietness (-8 to -10 dB) compared to the HTF type.
Grease sealed type A1 seal mounted model HTF-ASRC Model is also available

･Shaft Diameter： φ50-φ120
･Leads ：14mm 16mm 20mm 25mm
･Preload clearance ： (0.020 or less, 0.050 or less)
･Accuracy ： Ct7

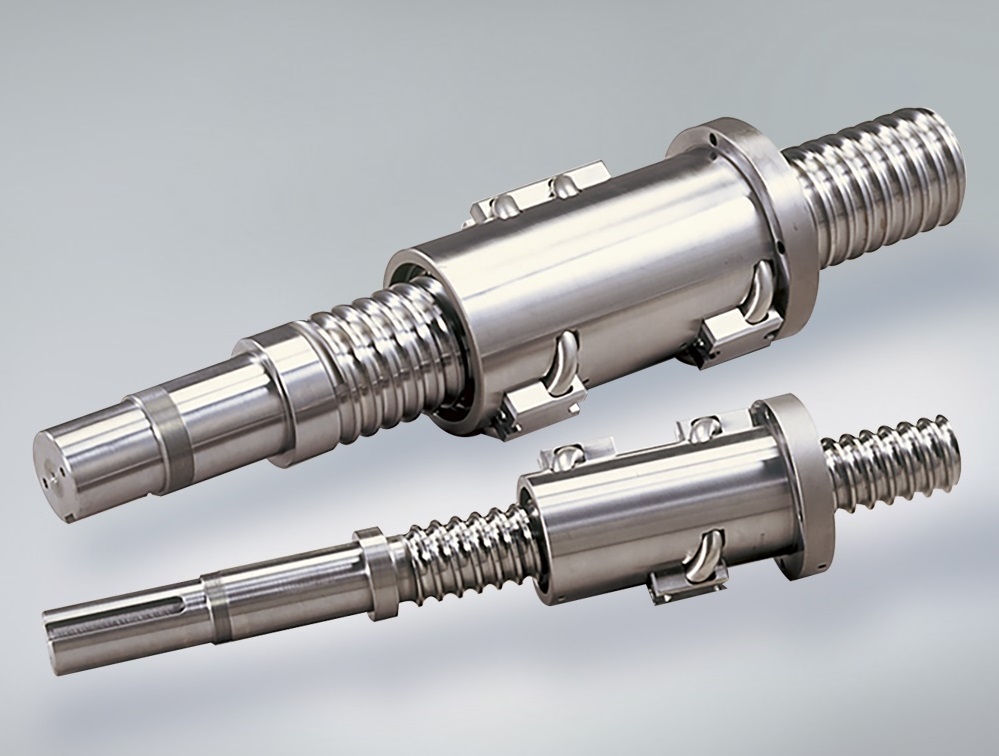

Ball Screw for high load drive, optimization of circulation path arrangement and
Ideal for high loads with the ball diameter as large as possible
Due to the ball groove design,
The load bearing performance is greatly improved compared to the conventional ball screw.

It is a product that adopts the end deflector method as the circulation method and realizes
a permissible d / n value of 120,000 high speed and quietness.
Grease sealed type A1 seal mounted model HTF-ASRD Model is also available

･Shaft Diameter：φ63-φ120
･Lead：32-120
･Preload clearance： (0.020 or less, 0.050 or less)
･Accuracy：Ct7

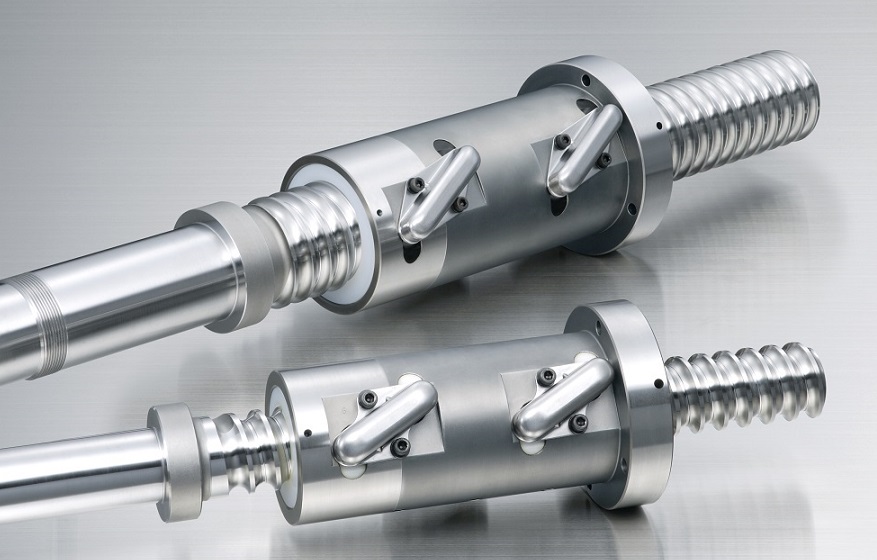

Ball Screw for high load drive, optimization of circulation path arrangement and
Ideal for high loads with the ball diameter as large as possible
Due to the ball groove design,
The load bearing performance is greatly improved compared to the conventional ball screw.

This product uses a tangential direction scooping method for the deflector as the circulation method,
and achieves a high speed with an allowable d ・ n value of 100,000).

･Shaft Diameter：φ140-φ200
･Lead：25-80
･Preload clearance：(0.050 or less)
･Accuracy：Ct7

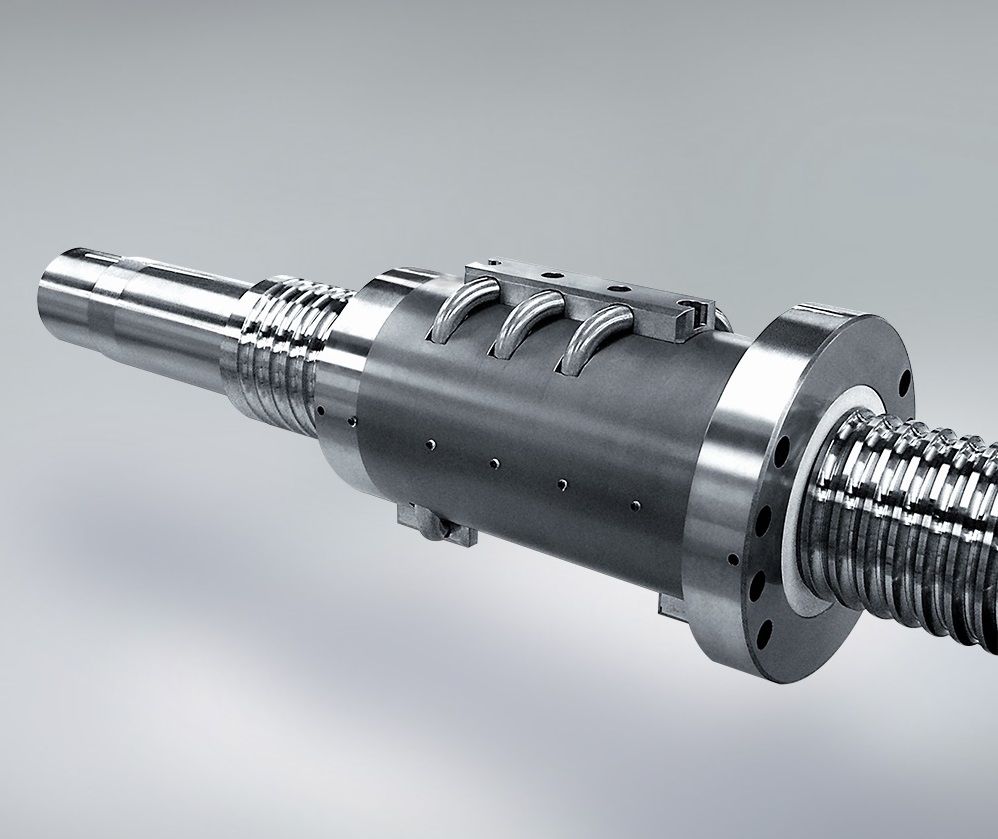

Ball Screw for high load drive, optimization of circulation path arrangement and
Ideal for high loads with the ball diameter as large as possible
Due to the ball groove design,
The load bearing performance is greatly improved compared to the conventional ball screw.

･Shaft Diameter：φ32-φ200
･Leads：10-32
･Preload clearance：(0.020 or less, 0.050 or less)
･Accuracy：Ct7
